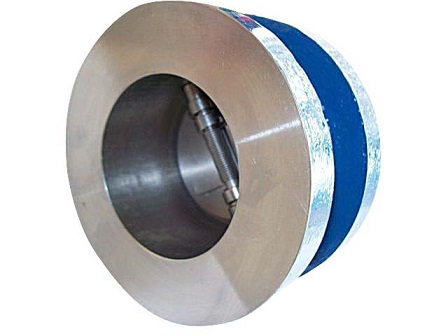

Dual Plate Check Valve

HomeDual Plate Check Valve
HomeDual Plate Check Valve
Dual Plate Check Valve

AMTECH™ Dual plate check valves is most suitable foe water pumps, chemicals pupms and oil gas applications. Body of DPCV are CI, CS, SS304, SS 316 or any specific materials with the Disc of same materials as well as other materials.Dual plate NRV is soft seated with Nitrile,Neoprene,Silicon ,Viton etc.It is suitable for vaccum application.We have sizes from 50 mm to 900 mm.



Specification

AMTECH,DUAL PLATE WAFER CHECK VALVES
BODY
CI IS 210 GR FG 200/220/CS ASTMA
216 GR WCB /SG IRON/ SS 304 / SS 316
CLOSURE PLATE (DISC)
CI IS 210 GR FG 200/220/CS ASTMA
216 GR WCB /SG IRON/ SS 304 / SS 316
HINGE PIN
AISI 304 / AISI 316
STOP PIN
AISI 304 / AISI 316
SPRING
SPRING -STAINLESS STEEL
SEAT
EPDM
INSP & TEST STD
GENERALLY CONFORMING TO API 6 D/ API 594
ENDS
WAFER TYPE TO SUITE ANSI B 16.1 (150#)
HYD-TEST PRESS
BODY : 425 PSIG (30 Kg/CM2)
SEAT : 300 PSIG (21Kg/CM2)
SIZE RANGE
50 NB MM TO 900 NB (2" TO 36")
